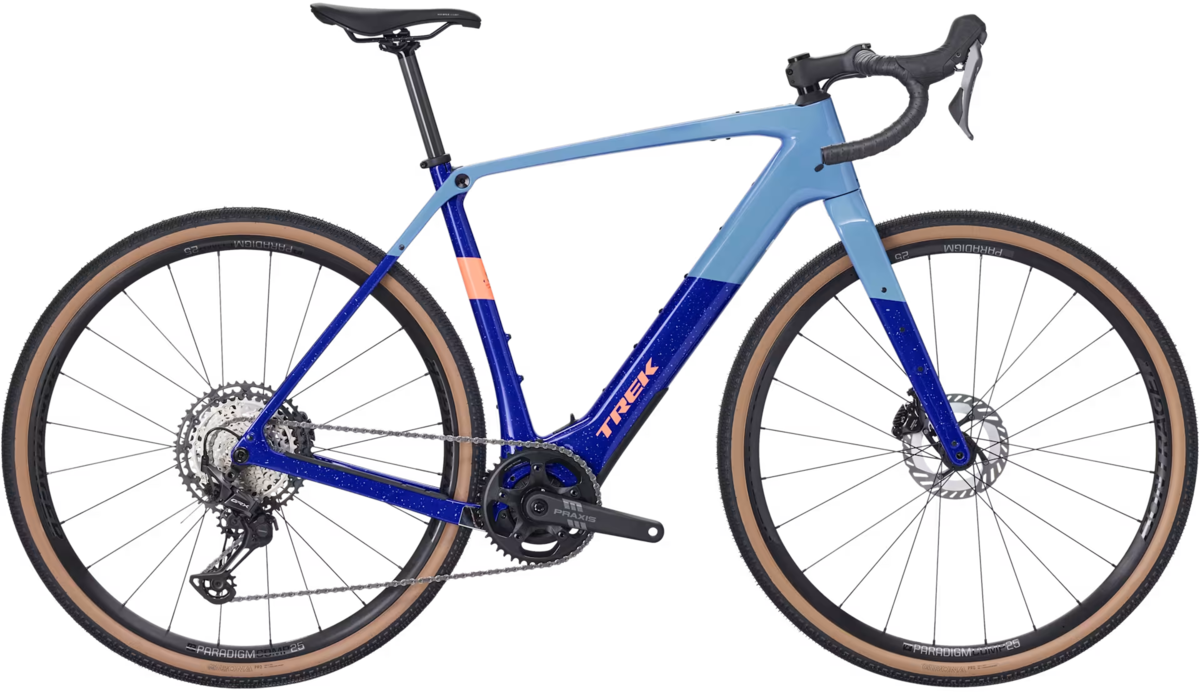

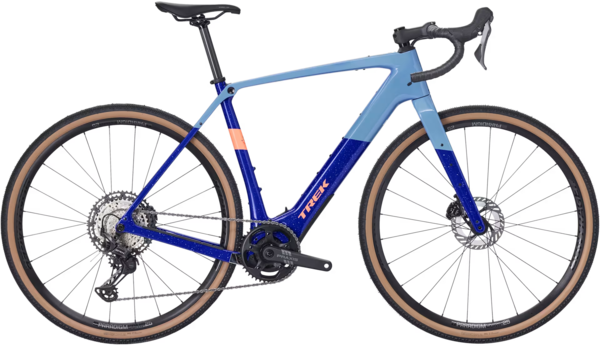

Trek Checkpoint+ SL 5

Trek Checkpoint+ SL 5
  • Color: Fjord Blue/Cobalt Blue
  • Color: Matte Bronze Age/Dark Web
$6,999.99
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Order now and pick up in store for free

Details

Checkpoint+ SL 5 is an electric gravel bike built to take you the distance. You get a TQ HPR60 motor with a smooth and quiet boost up to 28mph and a 360Wh battery that keeps going on your biggest rides. It comes ready to roll with an OCLV Carbon frame, durable alloy wheels, 12-speed Shimano GRX 1x shifting, and endurance geometry to keep you comfortable for the long haul.

*All measurements provided in cm unless otherwise noted.

Sizes:
SizeX-SmallSmallMediumMedium/LargeLargeX-Large
Wheel size 700c 700c 700c 700c 700c 700c
A — Seat tube 44.5 48 50.5 53 55 57.5
B — Seat tube angle 74.0° 74.0° 73.3° 73.3° 73.3° 73.3°
Effective seat tube angle 72.7° 73.0° 72.8° 72.8° 72.8° 72.8°
C — Head tube length 8.6 10.6 13 15.1 17.1 19.1
D — Head angle 71.0° 71.4° 71.6° 72.0° 72.1° 72.4°
E — Effective top tube 53.6 54.7 56.6 57.8 58.9 60.1
G — Bottom bracket drop 7.6 7.6 7.6 7.6 7.6 7.6
H — Chainstay length 44 44 44 44 44 44
I — Offset 4.9 4.9 4.9 4.9 4.9 4.9
J — Trail 7.1 6.8 6.8 6.4 6.4 6.2
K — Wheelbase 102.3 103.2 104.4 105.2 106.3 107.2
L — Standover 74.6 77.2 79.9 81.3 83.7 86.1
M — Frame reach 38 38.6 39.1 39.7 40.2 40.8
N — Frame stack 53.5 55.6 57.9 60.1 62 64

*All measurements provided in cm unless otherwise noted.

Sizes:
SizeX-SmallSmall (49cm)Medium (52–54cm)Medium-Large (56cm)Large (58cm)X-Large (61cm)
Rider Height (cm / ft/in) 143–158 cm4'8"–5'2" 158–164 cm5'2"–5'5" 164–177 cm5'5"–5'10" 177–188 cm5'10"–6'2" 188–194 cm6'2"–6'4" 194–203 cm6'4"–6'8"
Inseam (cm / in) 67–74 cm26"–29" 74–77 cm29"–30" 77–83 cm30"–33" 83–88 cm33"–35" 88–91 cm35"–36" 91–95 cm36"–37"

Specs

Frame 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
Fork Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Wheels Front: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Tires Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Crankset Size: XS, S Praxis Alloy, 165mm length Size: M, ML Praxis Alloy, 170mm length Size: L, XL Praxis Alloy, 172.5mm length
Shifters Shimano GRX RX820, 12 speed
Rear Derailleur Shimano GRX RX822, 51T max cog
Cassette/Freewheel Shimano XT M8200, 10-51, 12 speed OR Shimano XT M8100, 10-51, 12 speed
Chain Shimano XT M8100, 12 speed
Rotors Shimano CL800, centerlock, 160mm
Brake Levers Shimano GRX RX820, 12 speed
Handlebars Size: XS, S Bontrager Elite Gravel, alloy, 40cm width Size: M, ML Bontrager Elite Gravel, alloy, 42cm width Size: L Bontrager Elite Gravel, alloy, 44cm width Size: XL Bontrager Elite Gravel, alloy, 46cm width
Tape/Grips Bontrager Supertack Perf tape
Stem Size: XS Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length Size: S, M Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length Size: ML, L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length Size: XL Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Saddle Verse Short Comp, steel rails, 145mm width
Pedals Sold Separately
Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Battery TQ 360Wh
Controller/Display TQ color LED display with Bluetooth & ANT+ connectivity
Charger TQ 4A charger

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Fjord Blue/Cobalt Blue / Small / 700c 197216262077 5338654 CHE396369431
Fjord Blue/Cobalt Blue / Medium / 700c 197216262084 5338655 CHE396934811
Fjord Blue/Cobalt Blue / Medium/Large / 700c 197216262091 5338656 CHE404784031
Fjord Blue/Cobalt Blue / Large / 700c 197216262107 5338657 CHE39995971
Fjord Blue/Cobalt Blue / X-Large / 700c 197216262114 5338658 CHE409586321
Matte Bronze Age/Dark Web / X-Small / 700c 197216262008 5338647 CHE424785201
Matte Bronze Age/Dark Web / Small / 700c 197216262015 5338648 CHE419038281
Matte Bronze Age/Dark Web / Medium / 700c 197216262022 5338649 CHE419616251
Matte Bronze Age/Dark Web / Medium/Large / 700c 197216262039 5338650 CHE421428691
Matte Bronze Age/Dark Web / Large / 700c 197216262046 5338651 CHE414118421
Matte Bronze Age/Dark Web / X-Large / 700c 197216262053 5338652 CHE421619931
